The Lauber L-ENZ drying system is a compact and complete solution for the bulk drying of biomass fuels. Essentially the L-ENZ unit comprises of an air intake system, frequency modulated fan unit, high efficiency heat exchanger and sophisticated controls system to maximise electrical and thermal efficiency of the process dependent on the material being dried, the heat available and the target drying time.

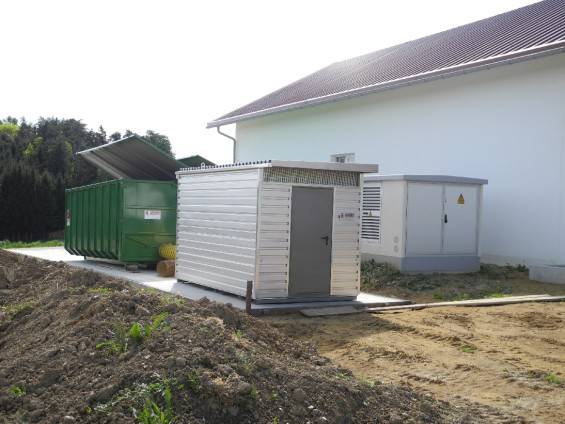

The L-ENZ unit comes complete with its own waterproof housing as a stand alone building that can live outside, the housing is complete with pitched roof and gutter along with both lifting eyes and forklift pockets at the base. In come instances (for example with CHP’s, AD plants or areas with process heat available), the L-ENZ can be supplied as a skid mounted unit to be housed indoors allowing warm process heat to be utilised as a means of ‘pre-heating’ the air, this often replaces the need for ventilation and lowers the thermal demand via hot water thus increasing the overall efficiency of the system and fulfilling two functions; cooling of the room and drying of biomass fuel.

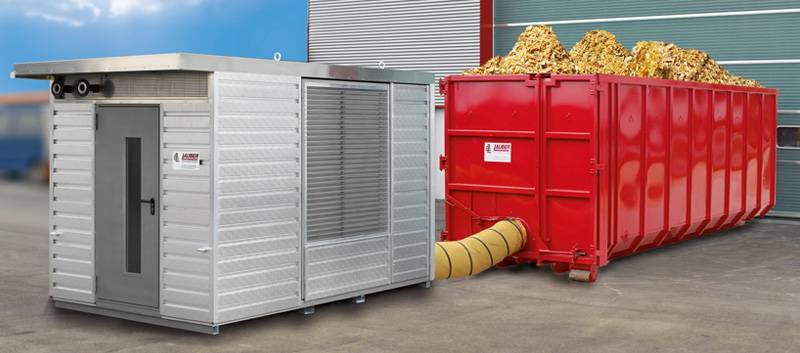

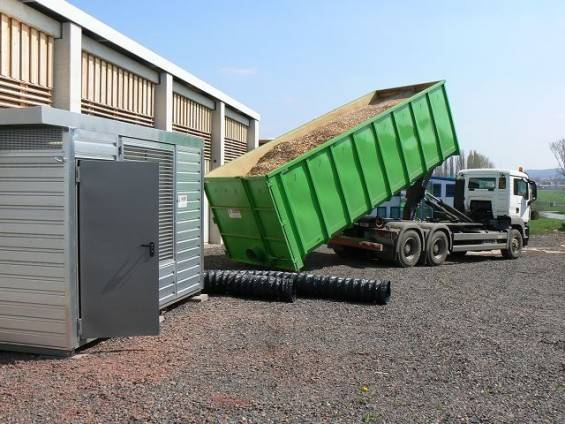

The L-ENZ can be connected to either a series of purpose build drying bins, or a static drying floor or in some cases a combination of both. The L-ENZ receives its heat inout via a flow and return pipe and efficiently converts the heat from hot water into hot air and driving this hot air through the biomass material at a pressure dependent on both the type and quantity of material being dried.
The L-ENZ 150 is suitable for drying up to:
2 drying bin (or equivalent area of drying floor) of woodchip
or
4 drying bins (or equivalent area of drying floor) of firewood logs
Fan : For this model a 5.5kw fan is supplied as standard
Air temperature control (supplied as standard): This optional operating mode allows the outgoing air temperature to be regulated to a set point, particularily useful if drying a temperature sensitive material such as grain.
Pressure differential control: This optional operating mode allows the fan to self regulate based on the type and quantity of fuel being dried
Heat Meter: The L-ENZ 150 can be factory fitted with a QP10 class 2 heat meter to ensure RHI compliance
Water flow regulation: the L-ENZ can be supplied either with a frequency modulated pump or a 3 way mixer valve depending on your application.
Valves: We offer the option to intergrate 4 stop cocks into the system either side of the pump to allow for isolation from the heat input pipework if required, this option also comes with a sediment trap if chosen.
Inlet pipe positions: As standard the L-ENZ unit has the flow and return pipes exiting/entering at the top corner adjacent to the air intake, however if you prefer we can an no extra charge allow the pipes to enter through a floor hatch internally.
Antifreeze: If specified it it possible to add antifreeze to the system up to 25% giving a frost protection down to -9 degrees, however we need to know in advance if this is your intention to specify both the pump and heat meter accordingly
Sound reduction: It is possible to have both a 10dB or a 20dB silencer added to your L-ENZ unit if you intend to operate in a particularly noise sensitive area. Its also possible through the controls to lower the fan speed at night or at set times to decrease noise as standard.
Number of adjustable air outlets: This L-ENZ unit is supplied with 2 adjustable outlets as standard however 2 additional outlets can be supplied if required giving a total of 4. If you plan to operate the L-ENZ with a rigid ducting then this option is not required.
Dimensions (assuming unit including housing):
Length: 5000 mm
Width: 2450 mm
Height: 2700 mm
Housing: complete weatherproof aluminium housing or skid mounted
Fan: high performance radial fan mounted in solid steel housing. Finished to RAL 3003 and IE2 compliant for optimised energy efficiency
Heat Exchanger: Supplied with an appropriately sized large Copper/Aluminium water to air heat exchanger. The maximum possible thermal conversion depends on the operating conditions and ambient air temperature.

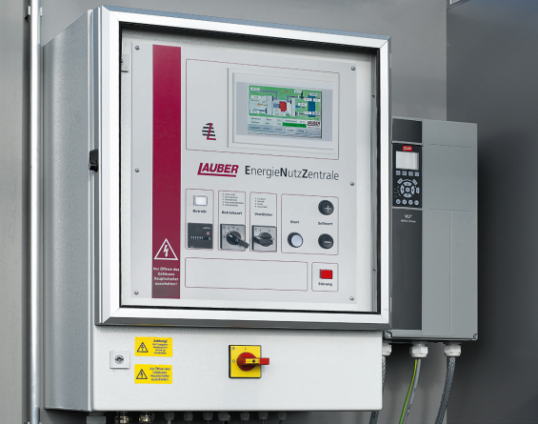

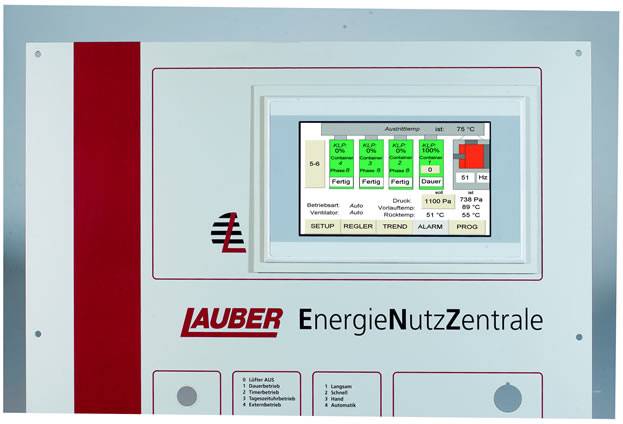

Control system: Supplied with touch screen controls
Electrical efficiency: On average electrical consumption is approximately 3-4kwhrs per cubic meter of fuel dried.
Thermal output:
- 245.0 @0°C
- 210.0 @10°C
- 180.0 @20°C
- 150.0 @30°C
Fan size (kW): 5.50
Controls: Touch screen
Drying performance (capacity/days):
Woodchip: 65 m3 / 1-2 days
Logs: 130 m3 / 6-10 days
